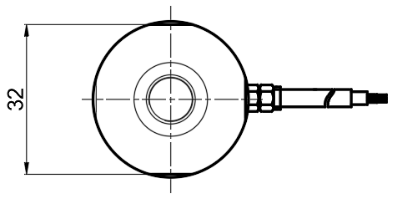

| 量程(kg) | M | D |
| 50-500 | M8 | 12 |
1000 | M12 | 13 |
| 量程Capacity | 50-1000kg |
| 精度等級Accuracy class | 0.5%F.S. |
| 額定輸出Rated output | 1.5-2.0mV/V |
| 零點輸出Zero balance | ±0.04 mV/V |
| 非線性Non-linearity | ±0.5%F.S. |
| 滯后Hysteresis | ±0.5%F.S. |
| 重復性Repeatability | ±0.5%F.S. |
| 蠕變(30分鐘)Creep(30min) | ±0.1%F.S. |
| 溫度靈敏度漂移Temp.effect on output | ±0.05%F.S./10°C |
| 零點溫度漂移Temp.effect on zero | ±0.05%F.S./10°C |
| 輸入電阻Input impedance | 750±50Ω |
| 輸出電阻Output impedance350 | 700±5Ω |
| 絕緣電阻Insulation | ≥5000MΩ(50VDC) |
| 使用電壓Recommended excitation | 5~10VDC |
| 最大使用電壓Maximum excitation | 15VDC |
| 溫度補償范圍Compensated temp. range | -10~40°C |
| 工作溫度范圍Operation temp. range | -20~60°C |
| 安全過載Safe overloadx | 120%F.S. |
| 極限過載Ultimate overload | 150%F.S. |
| 電纜線尺寸Cable size | Φ4x3m |
防護等級Portection class | IP65 |
